8噸歐式單梁起重機
8噸歐式單梁起重機介紹
LDC型8噸歐式電動單梁橋式起重機（以下簡稱8噸歐式單梁起重機），8噸歐式電動單梁起重機與8噸歐式電動葫蘆配套使用，成為一種有軌運行的輕小型起重機。
歐式單梁橋式起重機是是基于歐洲輕量化和模塊化設計理念以及先進生產制造工藝，在主梁上懸掛電動葫蘆起升機構，可左右、上下、前后實現物料物體在立體空間搬運。該產品技術先進，設計按照國際標準：DIN（德國）、FEM（歐洲）、ISO（國際），具有剛性強、自重輕、結構設計出眾等優點，能有效地節約廠房空間和投資成本，行走結構特點獨特。

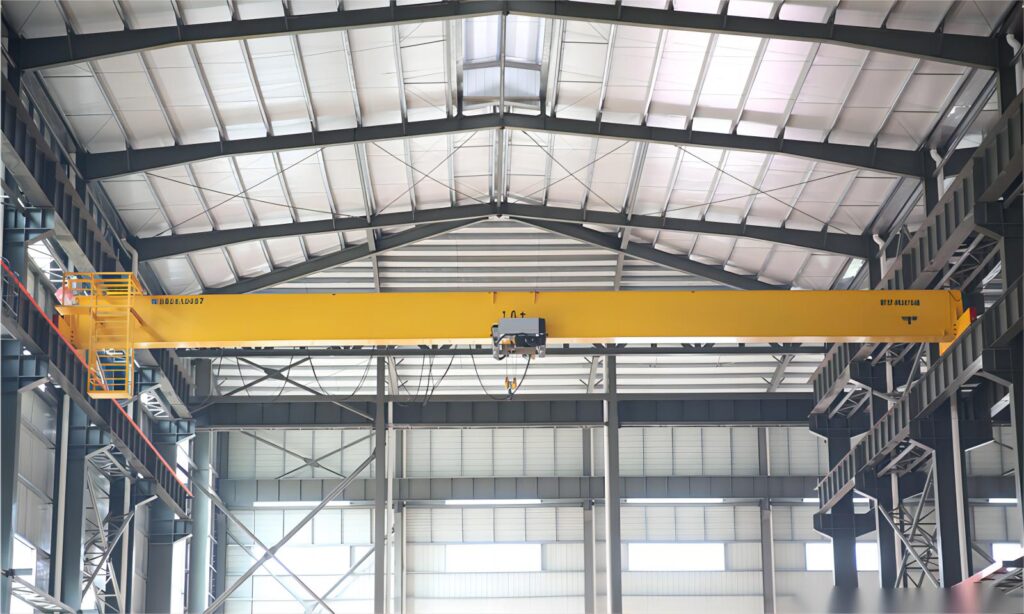

8噸歐式單梁起重機圖片
European single girder overhead crane is based on the European lightweight and modular design concept and advanced manufacturing technology, hanging on the main beam electric hoist lifting mechanism, can be left and right, up and down, front and back to achieve material objects in three-dimensional space transport.
This product is advanced in technology, designed in accordance with international standards: DIN (Germany), FEM (Europe), ISO (international), with strong rigidity, light weight, outstanding structural design and other advantages, can effectively save workshop space and investment cost, walking structure features unique, is your best choice.

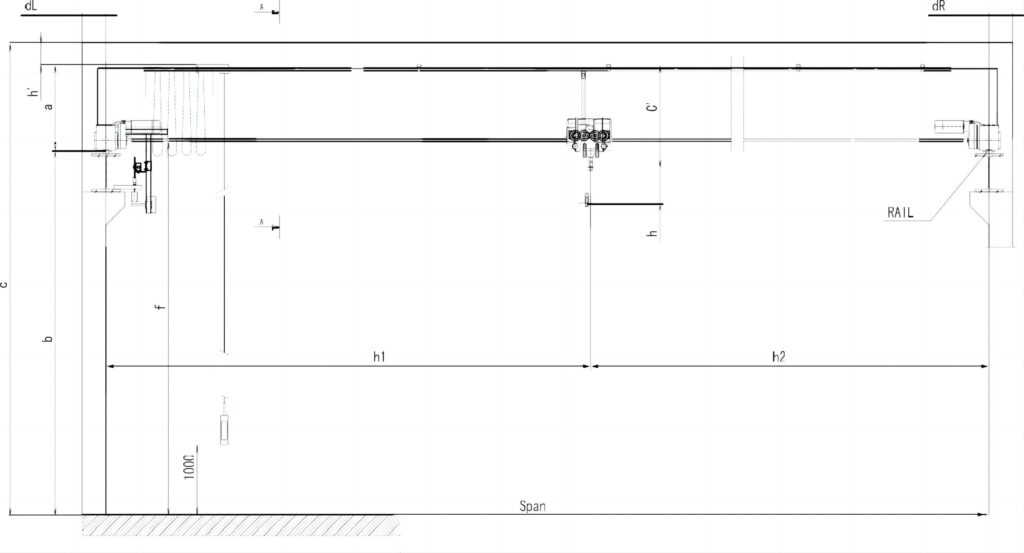

8噸歐式單梁起重機結構圖
8噸歐式單梁起重機技術參數
| 歐式起重機_歐式單梁8t起重機_主要技術參數及尺寸表 | |||||||||||
| 跨度 | Span | m | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | |
| 8t歐式單梁起重機基本參數表 | |||||||||||
| 基本參數 Basic Data | 整機自重 | Crane Weight | t | 2.6 | 3.18 | 3.99 | 4.8 | 5.68 | 6.86 | 8.66 | 10.22 |
| 小車自重 | Trolley Weight | 0.58 | 0.58 | 0.58 | 0.58 | 0.58 | 0.58 | 0.58 | 0.58 | ||
| 最大輪壓 | Max. Wheel Load | KN | 42.3 | 45.8 | 48.6 | 51.3 | 54 | 57.2 | 61.8 | 65.8 | |
| 最小輪壓 | Min. Wheel Load | 10.3 | 9.8 | 11 | 12.5 | 14.2 | 16.8 | 20.9 | 24.5 | ||
| 大車車輪數 | Crane Wheel Q’ty | PCS | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 推薦軌道 | Crane Rail | P22 | P22 | P22 | P22 | P22 | P22 | P22 | P22 | ||
| 8t歐式單梁起重機運行速度表 | |||||||||||
| 速度Speed | 起升速度 | Lifting Speed | m/min | 5/0.83 | |||||||
| 小車速度 | Trolley Speed | 0-20 | |||||||||
| 大車速度 | Bridge Speed | 0-32 | |||||||||
| 8t歐式單梁起重機電機功率 | |||||||||||
| 電機功率 MotorPower | 起升電機 | Lifting Motor | KW | 7.5/1.2 | 7.5/1.2 | 7.5/1.2 | 7.5/1.2 | 7.5/1.2 | 7.5/1.2 | 7.5/1.2 | 7.5/1.2 |
| 小車電機 | Trolley Motor | 0.45×2 | 0.45×2 | 0.45×2 | 0.45×2 | 0.45×2 | 0.45×2 | 0.45×2 | 0.45×2 | ||
| 大車電機 | Bridge Motor | 0.65×2 | 0.65×2 | 0.65×2 | 0.65×2 | 1.1 x2 | 1.1 x2 | 1.1 x2 | 1.1 x2 | ||
| 整機功率 | Crane Power | 9.7 | 9.7 | 9.7 | 9.7 | 10.6 | 10.6 | 10.6 | 10.6 | ||
