UP系列四繩派拿抓斗常用于多用途的各類起重機上面配套使用，主要產品型號有：UP0536、UP0860、UP1077、UP1612、UP2014、UP2519、UP3222、UP4028、UP5035、UP6345、UP0530、UP0849、UP1063、UP1610、UP2012、UP2515、UP3218、UP4023、UP5030、UP6338、UP0525、UP0841、UP1052、UP1683、UP2095、UP2512、UP3215、UP4019、UP5024、UP6331、UP0520、UP0833、UP1041、UP1667、UP2078、UP2510、UP3212、UP4015、UP5019、UP6324、UP0516、UP0826、UP1033、UP165.5、UP2065、UP2583、UP3210、UP4012、UP5016、UP6320、UP0513、UP0822、UP1027、UP1644、UP2050、UP2565、UP3280、UP4010、UP5013、UP6316、UP0510、UP0816、UP1020、UP1633、UP2040、UP2550、UP3263、UP4080、UP5010、UP6312等型號。
UP系列派拿雙顎瓣抓斗造型新穎、結構合理、抓取物料重量與抓斗自重之比達到1.5~1.92，充滿度達到95%~100%，是最小粒度松散物的理想抓具。與傳統的普通四繩抓斗相比較有以下特點:下承梁架構縮短、強度好、自重輕:主要較點的襯套材質為軸承鋼。延長使用壽命4~5倍，刃口板采用專用耐磨板材，增強了沖擊力和磨擦度，滑輪上采用多層密封工藝，防塵防水可以水下作業，刃口板合縫間隙小，可達到0.3mm~1mm能保持作業場所清潔，整體結構不易變形不錯口，本類型抓斗可設計為雙繩。
抓斗說明
- 產品名稱：UP四繩派拿抓斗
- 型號規格：UP
- 所屬類別：抓斗抓具
- 產品產地：河南新鄉長垣
- 非標定制：可定制
- 是否現貨：部分少量現貨
- 生產周期：10~20天
- 包裝形式：無
- 供貨范圍：全國
- 送達方式：自提或代辦托運
- 是否安裝：安裝另計
- 售后方式：一年保修

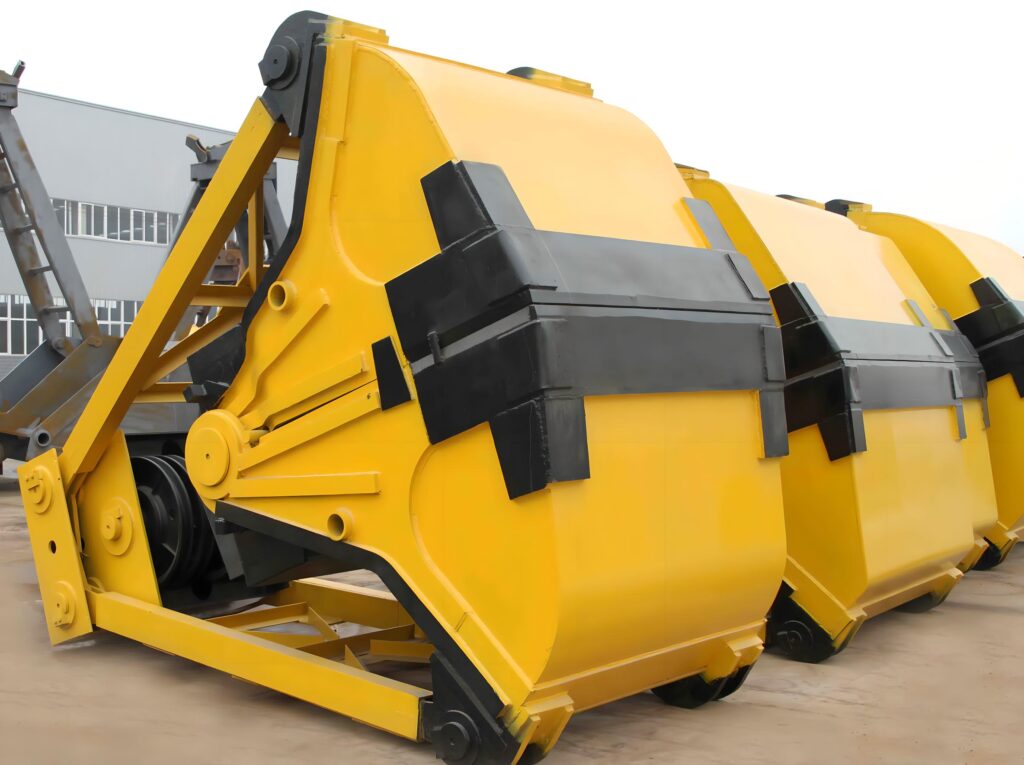

抓斗圖冊
抓斗參數

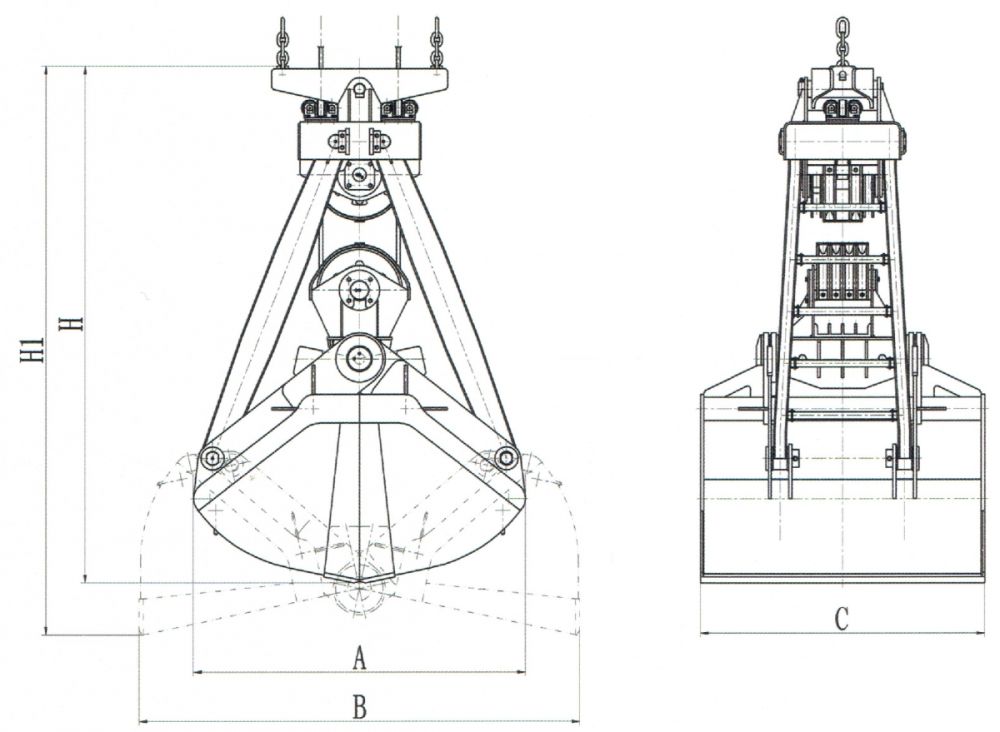

UP系列四繩派拿抓斗結構示意圖
UP系列四繩派拿抓斗技術參數與主要尺寸數據表
| 型號 | 配用起重機噸位t | 容積m3 | 散貨自坡角 | 抓斗水平容積m3 | 散貨堆積密度m3 | 散貨粒度至mm | 抓斗自重t | 滑輪倍率 | 滑輪直徑mm | 鋼絲繩直徑mm | 抓斗閉合高度Hmm | 抓斗張開高度H1mm | 抓斗閉合長度A mm | 抓斗張開長度B mm | 抓斗寬度C mm |
| UP0536 | 5 | 3.6 | 40° | 1.6 | 0.8 | 30 | 2.2 | 3 | Φ315 | Φ16 | 2630 | 2960 | 2150 | 2920 | 2190 |
| UP0860 | 8 | 6.0 | 40° | 2.6 | 0.8 | 30 | 3.2 | 3 | Φ400 | Φ20 | 3180 | 3610 | 2560 | 3455 | 2590 |
| UP1077 | 10 | 7.7 | 40° | 3.4 | 0.8 | 30 | 3.8 | 3 | Φ450 | Φ22 | 3450 | 3940 | 2770 | 3740 | 2805 |
| UP1612 | 16 | 12.5 | 40° | 5.5 | 0.8 | 30 | 6.1 | 3 | Φ560 | Φ26 | 4060 | 4660 | 3250 | 4390 | 3290 |
| UP2014 | 20 | 14.2 | 40° | 6.2 | 0.8 | 30 | 8.7 | 3 | Φ630 | Φ28 | 4430 | 5040 | 3420 | 4590 | 3440 |
| UP2519 | 25 | 19 | 40° | 8.3 | 0.8 | 30 | 9.8 | 3 | Φ630 | Φ32 | 4670 | 5400 | 3760 | 5060 | 3790 |
| UP3222 | 32 | 22.5 | 40° | 9.8 | 0.8 | 30 | 14 | 3 | Φ710 | Φ36 | 5040 | 5760 | 3980 | 5340 | 4000 |
| UP4028 | 40 | 28 | 40° | 12.2 | 0.8 | 30 | 17.6 | 3 | Φ800 | Φ40 | 5510 | 6330 | 4280 | 5720 | 4290 |
| UP5035 | 50 | 35.5 | 40° | 15.5 | 0.8 | 30 | 21.5 | 3 | Φ900 | Φ44 | 6040 | 6890 | 4630 | 6220 | 4660 |
| UP6345 | 63 | 45 | 40° | 19.6 | 0.8 | 30 | 27 | 3 | Φ1000 | Φ48 | 6560 | 7520 | 5000 | 6710 | 5030 |
| UP0530 | 5 | 3 | 40° | 1.3 | 1.0 | 30 | 2.1 | 3 | Φ315 | Φ16 | 2550 | 2860 | 2030 | 2750 | 2060 |
| UP0849 | 8 | 4.9 | 40° | 2.1 | 1.0 | 30 | 3.1 | 3 | Φ400 | Φ20 | 3060 | 3460 | 2400 | 3210 | 2405 |
| UP1063 | 10 | 6.3 | 40° | 2.7 | 1.0 | 30 | 3.8 | 3 | Φ450 | Φ22 | 3320 | 3780 | 2590 | 3490 | 2615 |
| UP1610 | 16 | 10 | 40° | 4.4 | 1.0 | 30 | 5.9 | 3 | Φ560 | Φ26 | 3900 | 4450 | 3010 | 4080 | 3060 |
| UP2012 | 20 | 12 | 40° | 5.2 | 1.0 | 30 | 8.0 | 3 | Φ630 | Φ28 | 4300 | 4860 | 3240 | 4340 | 3250 |
| UP2515 | 25 | 15.8 | 40° | 6.9 | 1.0 | 30 | 9.2 | 3 | Φ630 | Φ32 | 4520 | 5170 | 3530 | 4760 | 3570 |
| UP3218 | 32 | 18.8 | 40° | 8.2 | 1.0 | 30 | 13.2 | 3 | Φ710 | Φ36 | 4890 | 5550 | 3770 | 5030 | 3770 |
| UP4023 | 40 | 23.6 | 40° | 10.3 | 1.0 | 30 | 16.4 | 3 | Φ800 | Φ40 | 5350 | 6090 | 4050 | 5420 | 4060 |
| UP5030 | 50 | 30 | 40° | 13.1 | 1.0 | 30 | 20 | 3 | Φ900 | Φ44 | 5860 | 6650 | 4400 | 5860 | 4390 |
| UP6338 | 63 | 37.8 | 40° | 16.5 | 1.0 | 30 | 25.2 | 3 | Φ1000 | Φ48 | 6380 | 7250 | 4730 | 6340 | 4750 |
| UP0525 | 5 | 2.5 | 35° | 1.2 | 1.25 | 30 | 2.1 | 4 | Φ315 | Φ16 | 2470 | 2850 | 2070 | 2615 | 1830 |
| UP0841 | 8 | 4.1 | 35° | 2.0 | 1.25 | 30 | 3.1 | 4 | Φ400 | Φ20 | 3000 | 3470 | 2440 | 3095 | 2165 |
| UP1052 | 10 | 5.2 | 35° | 2.5 | 1.25 | 30 | 3.7 | 4 | Φ450 | Φ22 | 3240 | 3770 | 2630 | 3330 | 2330 |
| UP1683 | 16 | 8.3 | 35° | 4.0 | 1.25 | 30 | 5.8 | 4 | Φ560 | Φ26 | 3810 | 4430 | 3060 | 3895 | 2725 |
| UP2095 | 20 | 9.5 | 35° | 4.6 | 1.25 | 30 | 8.2 | 4 | Φ630 | Φ28 | 4170 | 4820 | 3240 | 4070 | 2845 |
| UP2512 | 25 | 12.5 | 35° | 6.0 | 1.25 | 30 | 9.3 | 4 | Φ630 | Φ32 | 4350 | 5090 | 3550 | 4420 | 3090 |
| UP3215 | 32 | 15 | 35° | 7.2 | 1.25 | 30 | 13.1 | 4 | Φ710 | Φ36 | 4700 | 5500 | 3770 | 4730 | 3310 |
| UP4019 | 40 | 19.5 | 35° | 9.4 | 1.25 | 30 | 16.2 | 4 | Φ800 | Φ40 | 5210 | 6070 | 4100 | 5150 | 3600 |
| UP5024 | 50 | 24.5 | 35° | 11.9 | 1.25 | 30 | 20 | 4 | Φ900 | Φ44 | 5740 | 6630 | 4430 | 5630 | 3940 |
| UP6331 | 63 | 31 | 35° | 14.9 | 1.25 | 30 | 24.9 | 4 | Φ1000 | Φ48 | 6200 | 7220 | 4800 | 6000 | 4195 |
| UP0520 | 5 | 2.0 | 30° | 1.1 | 1.6 | 30 | 1.9 | 4 | Φ315 | Φ16 | 2360 | 2790 | 2030 | 2395 | 1675 |
| UP0833 | 8 | 3.3 | 30° | 1.7 | 1.6 | 30 | 2.9 | 4 | Φ400 | Φ20 | 2880 | 3390 | 2380 | 2840 | 1985 |
| UP1041 | 10 | 4.1 | 30° | 2.4 | 1.6 | 30 | 3.5 | 4 | Φ450 | Φ22 | 3085 | 3660 | 2570 | 3040 | 2125 |
| UP1667 | 16 | 6.7 | 30° | 3.5 | 1.6 | 30 | 5.4 | 4 | Φ560 | Φ26 | 3650 | 4320 | 3020 | 3585 | 2510 |
| UP2078 | 20 | 7.8 | 30° | 4.1 | 1.6 | 30 | 8.0 | 4 | Φ630 | Φ28 | 4010 | 4710 | 3200 | 3750 | 2625 |
| UP2510 | 25 | 10 | 30° | 5.4 | 1.6 | 30 | 9.0 | 4 | Φ630 | Φ32 | 4180 | 4980 | 3470 | 4090 | 2860 |
| UP3212 | 32 | 12.2 | 30° | 6.4 | 1.6 | 30 | 12.8 | 4 | Φ710 | Φ36 | 4550 | 5490 | 3700 | 4370 | 3060 |
| UP4015 | 40 | 15.3 | 30° | 8.1 | 1.6 | 30 | 15.8 | 4 | Φ800 | Φ40 | 4970 | 5900 | 4000 | 4680 | 3275 |
| UP5019 | 50 | 19.3 | 30° | 10.2 | 1.6 | 30 | 19.5 | 4 | Φ900 | Φ44 | 5480 | 6430 | 4310 | 5110 | 3570 |
| UP6324 | 63 | 24.6 | 30° | 13.0 | 1.6 | 30 | 24.2 | 4 | Φ1000 | Φ48 | 5960 | 7050 | 4670 | 5520 | 3860 |
| UP0516 | 5 | 1.6 | 27.5° | 0.9 | 2.0 | 30 | 2.2 | 4 | Φ315 | Φ16 | 2280 | 2690 | 1930 | 2220 | 1555 |
| UP0826 | 8 | 2.6 | 27.5° | 1.4 | 2.0 | 30 | 3.2 | 4 | Φ400 | Φ20 | 2790 | 3260 | 2260 | 2660 | 1860 |
| UP1033 | 10 | 3.3 | 27.5° | 1.8 | 2.0 | 30 | 3.8 | 4 | Φ460 | Φ22 | 3000 | 3540 | 2440 | 2870 | 2010 |
| UP165.5 | 16 | 5.5 | 27.5° | 3.1 | 2.0 | 30 | 5.6 | 4 | Φ560 | Φ26 | 3540 | 4200 | 2900 | 3360 | 2350 |
| UP2065 | 20 | 6.5 | 27.5° | 3.6 | 2.0 | 30 | 7.5 | 4 | Φ630 | Φ28 | 3910 | 4600 | 3070 | 3560 | 2490 |
| UP2583 | 25 | 8.3 | 27.5° | 4.6 | 2.0 | 30 | 9.0 | 4 | Φ630 | Φ32 | 4040 | 4830 | 3350 | 3830 | 2680 |
| UP3210 | 32 | 10 | 27.5° | 5.6 | 2.0 | 30 | 12.8 | 4 | Φ710 | Φ36 | 4400 | 5200 | 3590 | 4070 | 2850 |
| UP4012 | 40 | 12.6 | 27.5° | 7.0 | 2.0 | 30 | 15.5 | 4 | Φ800 | Φ40 | 4830 | 5720 | 3850 | 4400 | 3080 |
| UP5016 | 50 | 16 | 27.5° | 8.9 | 2.0 | 30 | 19 | 4 | Φ900 | Φ44 | 5320 | 6260 | 4160 | 4800 | 3360 |
| UP6320 | 63 | 20.5 | 27.5° | 11.4 | 2.0 | 30 | 23 | 4 | Φ1000 | Φ48 | 5780 | 6850 | 4520 | 5180 | 3620 |
| UP0513 | 5 | 1.3 | 25° | 0.7 | 2.5 | 30 | 2.1 | 5 | Φ315 | Φ16 | 2210 | 2610 | 1870 | 2110 | 1370 |
| UP0822 | 8 | 2.2 | 25° | 1.3 | 2.5 | 30 | 3.2 | 5 | Φ400 | Φ20 | 2710 | 3210 | 2230 | 2530 | 1645 |
| UP1027 | 10 | 2.7 | 25° | 1.6 | 2.5 | 30 | 3.8 | 5 | Φ460 | Φ22 | 2920 | 3490 | 2400 | 2710 | 1760 |
| UP1644 | 16 | 4.4 | 25° | 2.6 | 2.5 | 30 | 5.6 | 5 | Φ560 | Φ26 | 3440 | 4110 | 2840 | 3170 | 2060 |
| UP2050 | 20 | 5 | 25° | 2.9 | 2.5 | 30 | 8.0 | 5 | Φ630 | Φ28 | 3790 | 4490 | 2970 | 3330 | 2160 |
| UP2565 | 25 | 6.5 | 25° | 3.8 | 2.5 | 30 | 9.0 | 5 | Φ630 | Φ32 | 3950 | 4730 | 3250 | 3640 | 2365 |
| UP3280 | 32 | 8.0 | 25° | 4.7 | 2.5 | 30 | 12.8 | 5 | Φ710 | Φ36 | 4270 | 5100 | 3490 | 3860 | 2510 |
| UP4010 | 40 | 10.2 | 25° | 5.9 | 2.5 | 30 | 15.5 | 5 | Φ800 | Φ40 | 4730 | 5640 | 3770 | 4200 | 2730 |
| UP5013 | 50 | 13 | 25° | 7.6 | 2.5 | 30 | 18.6 | 5 | Φ900 | Φ44 | 5200 | 6160 | 4110 | 4560 | 2960 |
| UP6316 | 63 | 16.5 | 25° | 9.5 | 2.5 | 30 | 22 | 5 | Φ1000 | Φ48 | 5640 | 6730 | 4440 | 4890 | 3180 |
| UP0510 | 5 | 1.0 | 22.5° | 0.6 | 3.2 | 60 | 2.2 | 5 | Φ315 | Φ16 | 2160 | 2590 | 1840 | 2000 | 1200 |
| UP0816 | 8 | 1.6 | 22.5° | 1.0 | 3.2 | 60 | 3.3 | 5 | Φ400 | Φ20 | 2620 | 3120 | 2150 | 2325 | 1395 |
| UP1020 | 10 | 2.0 | 22.5° | 1.2 | 3.2 | 60 | 3.8 | 5 | Φ460 | Φ22 | 2810 | 3370 | 2320 | 2500 | 1500 |
| UP1633 | 16 | 3.3 | 22.5° | 2.0 | 3.2 | 60 | 5.6 | 5 | Φ560 | Φ26 | 3320 | 3980 | 2720 | 2920 | 1750 |
| UP2040 | 20 | 4.0 | 22.5° | 2.4 | 3.2 | 60 | 7.6 | 5 | Φ630 | Φ28 | 3690 | 4410 | 2930 | 3130 | 1875 |
| UP2550 | 25 | 5.0 | 22.5° | 3.1 | 3.2 | 60 | 8.6 | 5 | Φ630 | Φ32 | 3800 | 4600 | 3170 | 3360 | 2015 |
| UP3263 | 32 | 6.3 | 22.5° | 3.8 | 3.2 | 60 | 12.2 | 5 | Φ710 | Φ36 | 4180 | 5020 | 3410 | 3640 | 2180 |
| UP4080 | 40 | 8.0 | 22.5° | 4.9 | 3.2 | 60 | 15 | 5 | Φ800 | Φ40 | 4600 | 5510 | 3700 | 3940 | 2360 |
| UP5010 | 50 | 10 | 22.5° | 6.1 | 3.2 | 60 | 18.8 | 5 | Φ900 | Φ44 | 5030 | 6000 | 3980 | 4240 | 2540 |
| UP6312 | 63 | 12.5 | 22.5° | 7.6 | 3.2 | 60 | 22 | 5 | Φ1000 | Φ48 | 5470 | 6530 | 4300 | 4560 | 2735 |
