2噸單梁起重機參數表2噸電動單梁起重機外形尺寸表
2噸單梁起重機介紹
LD型2噸電動單梁橋式起重機（以下簡稱2噸單梁起重機）是按標準JB/T1306-94設計制造的，2噸電動單梁起重機與CDI、MDI等形式的電動葫蘆配套使用，成為一種有軌運行的輕小型起重機，起重量為2噸，適用跨度為7.5-22.5米工作環境溫度在—25—+40℃范圍內。

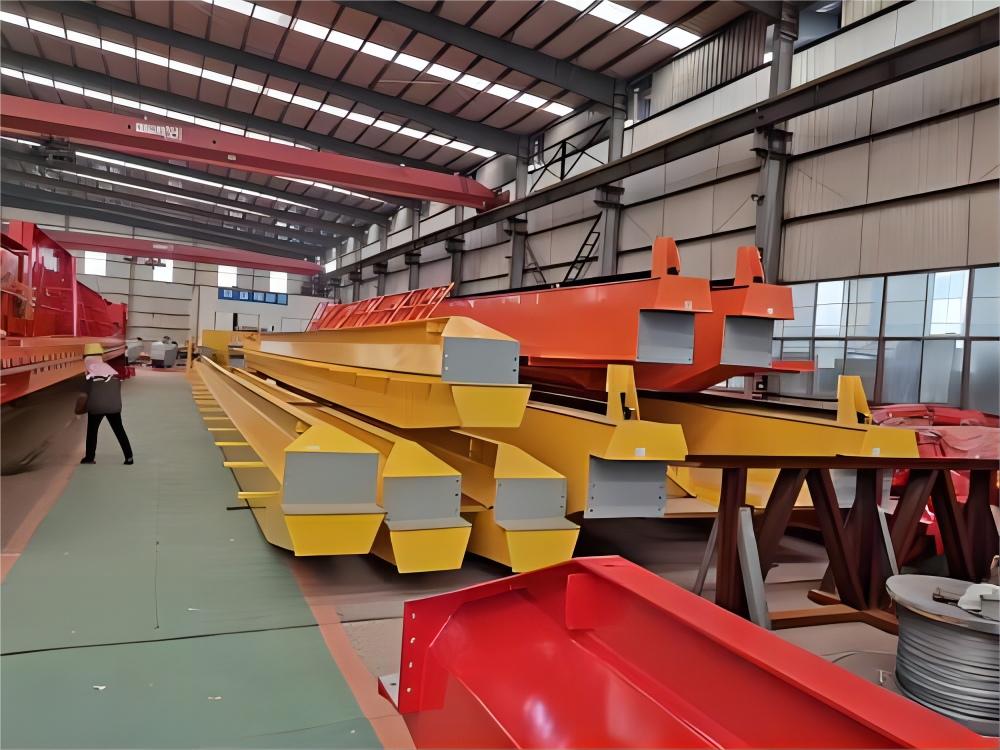

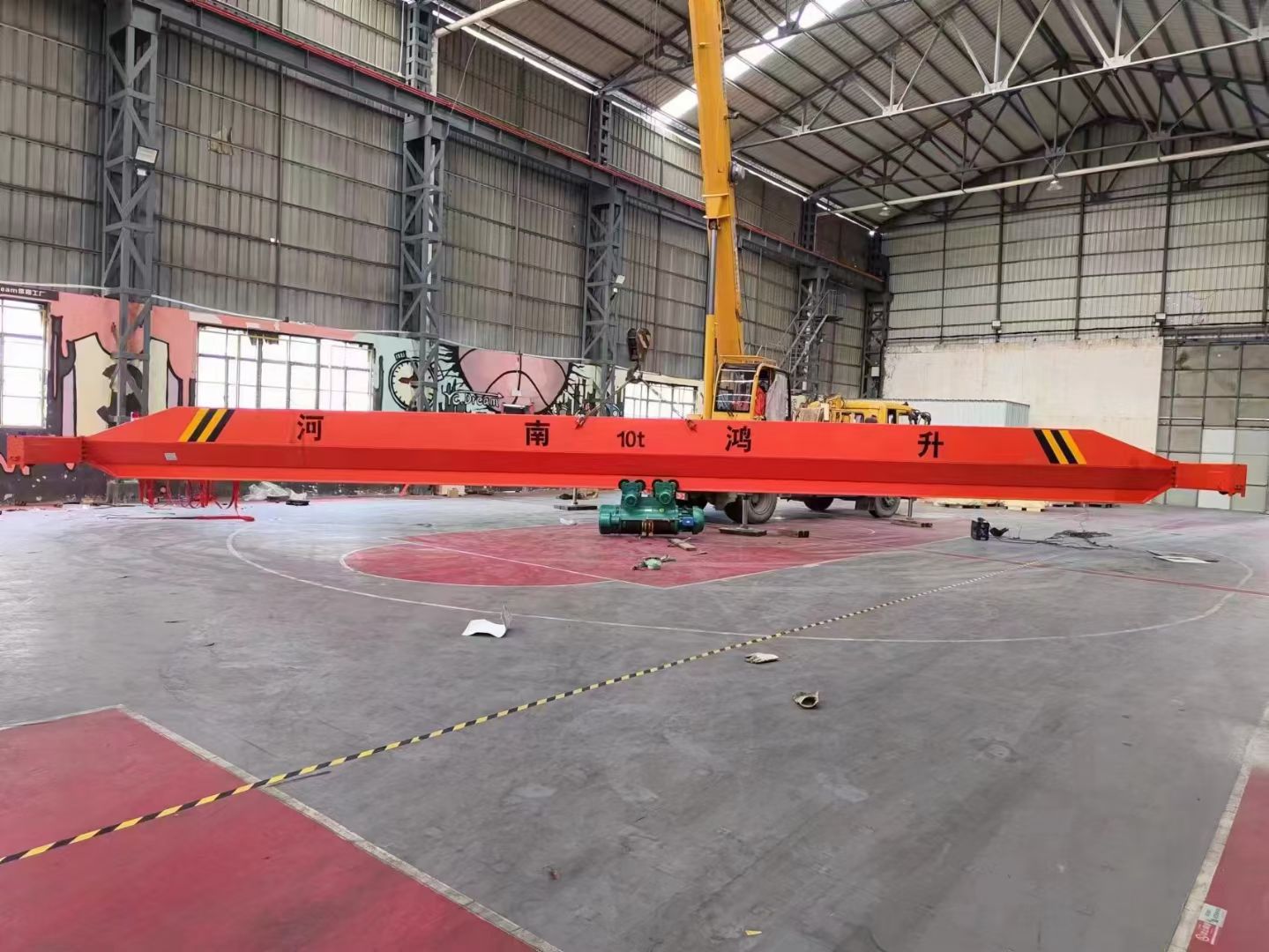

2噸單梁起重機圖片

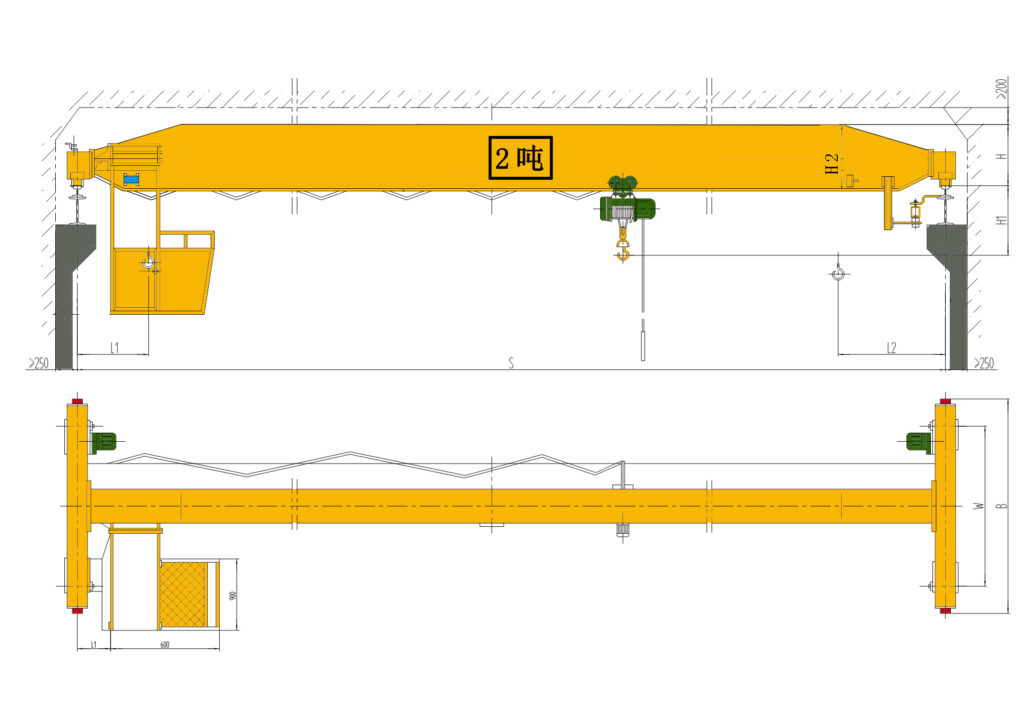

2噸單梁起重機結構圖
2噸單梁起重機技術參數
| 起重機運行機構cranetravellingmechanism | 運行速度(m/min)Working speed | (地)20ground | (地)30ground | (室)room | ||
| 速比speed ratio | 58.78 | 39.38 | 26.36 | |||
| 電動機motor | 型號type | YSE80?-4 | YSE90L-4 | 7DR100-4 | ||
| 功率(Kw)power | 2×0.8 | 2×1.5 | 2×1.5 | |||
| 轉速(r/min) otational speed | 1380 | |||||
| 起升機構(電動葫蘆及電動葫蘆運行機構Lifting Machanism(electric hoist)&electric hoist travellingmechanism | 電動葫蘆型式model of electric hois | MD,型model | CD,型mode | |||
| 起升速度(m/min)Lifting speed | 8/0.8(7/0.7) | 8(7) | ||||
| 起升高度H(m)Lifting height | 6、9、12、18、24、30 | |||||
| 運行速度(m/min)Traveling speed | 20 | |||||
| 電動機motor | 錐型鼠籠型cone squirrel-cage model | |||||
| 工作級別Working class | A3 | |||||
| 電源electric current | 380V 50H?three-phase | |||||
| 軌道面寬width of trai | 37~70mm | |||||
| 起重量Liltingweight | 跨度Span | 起重機質量Crane totalweight | 最大輪壓(KN)Max.wheepressure | 最小輪壓(KN)min.wheepressure | 基本尺寸Basic Dimensions (mm | ||||||
| H? | H? | H? | B? | C; | C? | B | |||||
| 2 | 7.5 | 1.84 | 19.4 | 4.0 | 490 | 1000 | 550 | 2500 | 871.5 | 1292.5 | 2000 |
| 8 | 1.89 | 19.5 | 4.1 | ||||||||
| 8.5 | 1.95 | 19.6 | 4.2 | ||||||||
| 9 | 2 | 19.8 | 4.4 | ||||||||
| 9.5 | 2.06 | 19.9 | 4.5 | ||||||||
| 10 | 2.11 | 20.0 | 4.6 | ||||||||
| 10.5 | 2.17 | 20.1 | 4.7 | ||||||||
| 11 | 2.22 | 20.2 | 4.8 | ||||||||
| 11.5 | 2.28 | 20.5 | 5.1 | 1050 | 595 | 2500 | 2000 | ||||
| 12 | 2.33 | 20.6 | 5.2 | ||||||||
| 12.5 | 2.39 | 20.9 | 5.5 | ||||||||
| 13 | 2.44 | 21.1 | 5.7 | ||||||||
| 13.5 | 2.5 | 21.2 | 5.8 | ||||||||
| 14 | 2.55 | 21.3 | 5.9 | ||||||||
| 14.5 | 2.85 | 21.7 | 6.3 | 580 | 1060 | 700 | 3000 | 2500 | |||
| 15 | 2.91 | 21.8 | 6.4 | ||||||||
| 15.5 | 2.98 | 21.9 | 6.5 | ||||||||
| 16 | 3.04 | 22.1 | 6.7 | ||||||||
| 16.5 | 3.11 | 22.1 | 6.8 | ||||||||
| 17 | 3.17 | 22.3 | 6.9 | ||||||||
| 19.5 | 4.05 | 24.8 | 9.4 | 600 | 1080 | 800 | 3000 | 2500 | |||
| 22.5 | 5.07 | 26.8 | 11.4 | 785 | 1120 | 900 | 3500 | 3000 | |||
