5噸單梁起重機參數表5噸電動單梁起重機外形尺寸表
5噸單梁起重機介紹
LD型5噸電動單梁橋式起重機（以下簡稱5噸單梁起重機）是按標準JB/T1306-94設計制造的，5噸電動單梁起重機與CDI、MDI等形式的電動葫蘆配套使用，成為一種有軌運行的輕小型起重機，起重量為5噸，適用跨度為7.5-22.5米工作環境溫度在—25—+40℃范圍內。

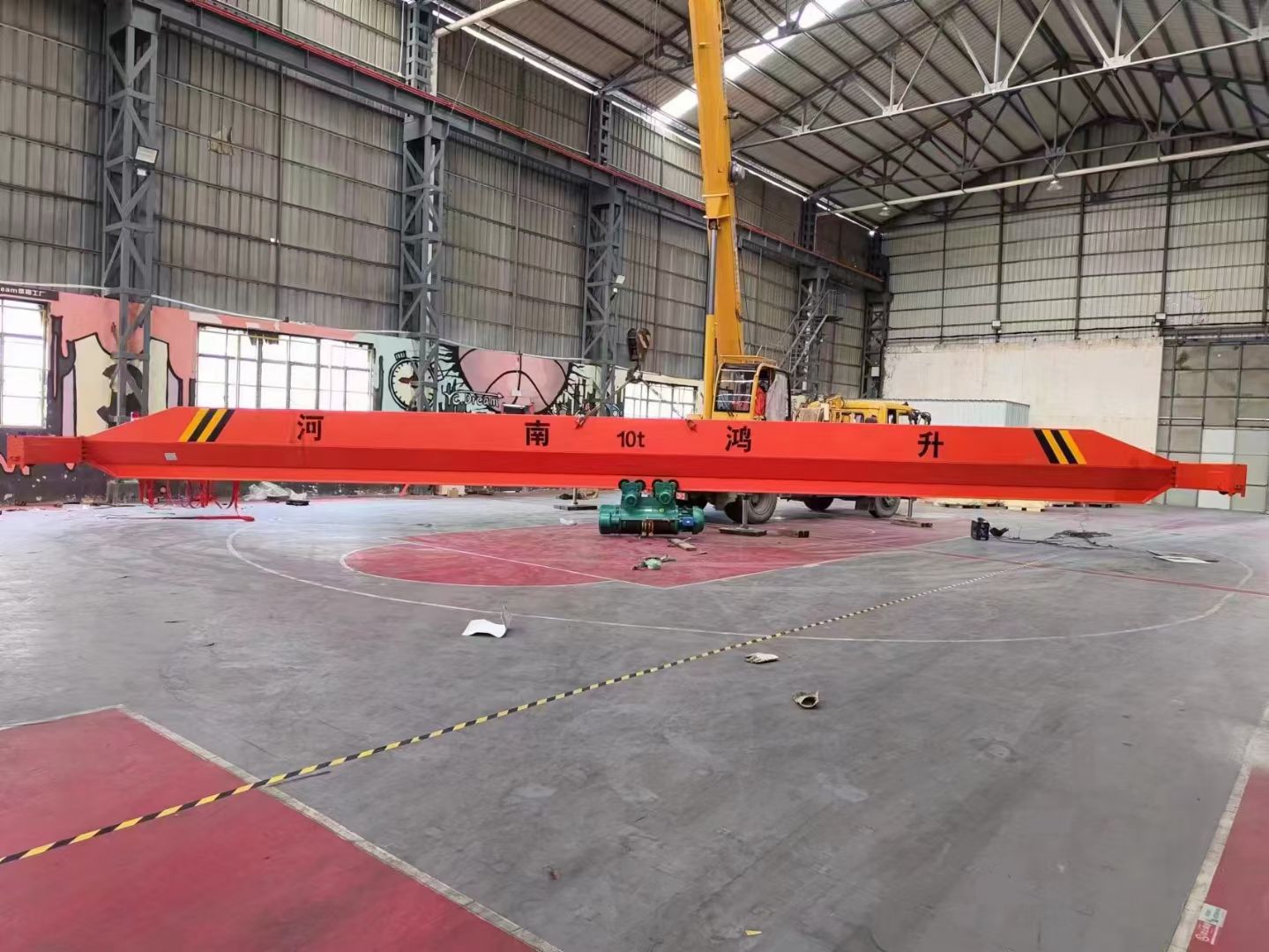

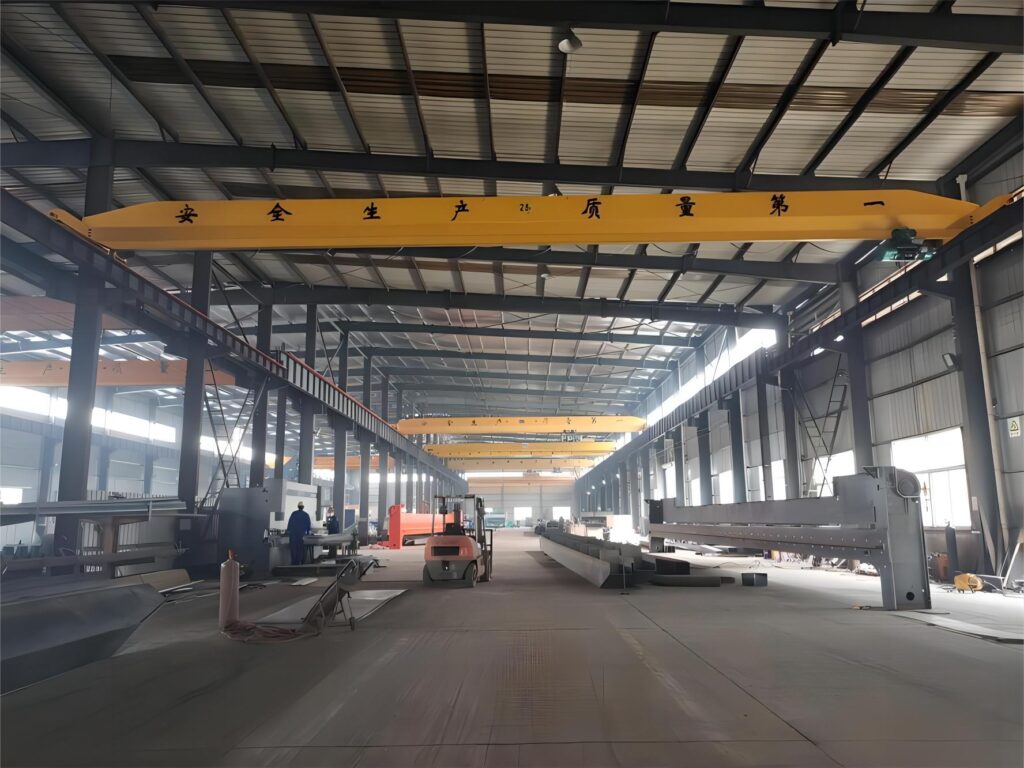

5噸單梁起重機圖片

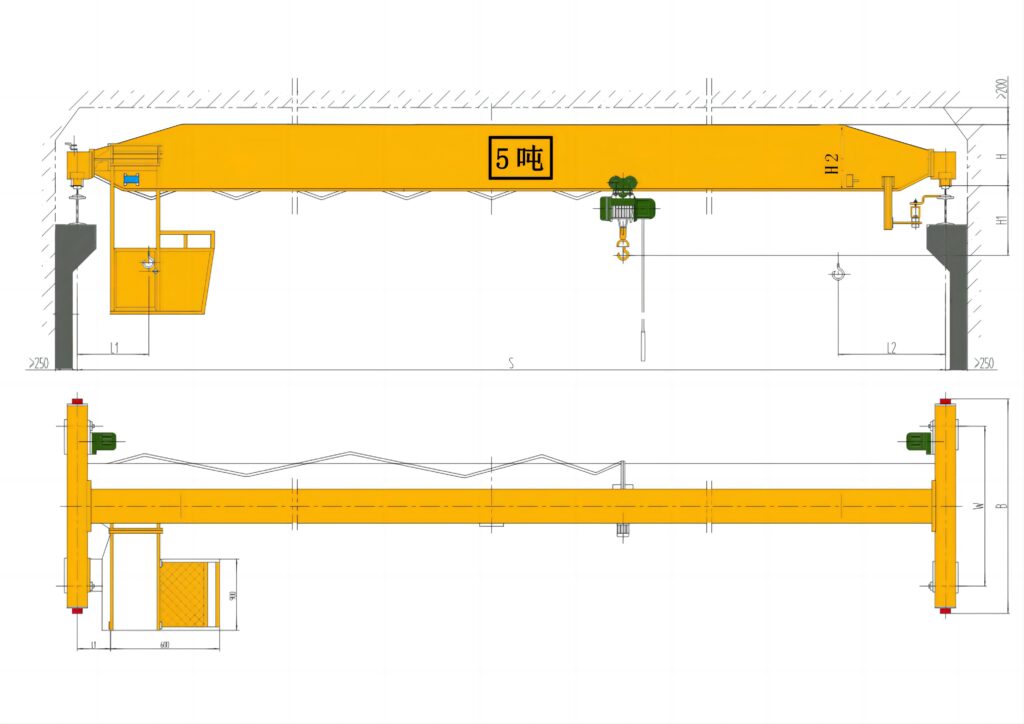

5噸單梁起重機結構圖
5噸單梁起重機技術參數
| 起重機運行機構cranetravellingmechanism | 運行速度(m/min)Working speed | (地)20ground | （地 ) 3 0ground | (室)room | ||
| 速比speed ratio | 58.78 | 39.38 | 26.36 | |||
| 電動機motor | 型號type | YSE80?-4 | YSE90L-4 | 7DB100-4 | ||
| 功 率 ( Kw ) p owe r | 2×0.8 | 2×1.5 | 2×1.5 | |||
| 轉速(r/min) otational speed | 1380 | |||||
| 起升機構(電動葫蘆)及電動葫蘆運行機構Lifting Machanism(electric hoist)&electric hoistravellingmechanism | 電動葫蘆型式model of electric hoist | MD,型mode | CD,型model | |||
| 起升速度(m/min)Lifting speed | 8/0.8(7/0.7 | 8(7) | ||||
| 起升高度H(m)Lifting height | 6、9、12、18、24、30 | |||||
| 運行速度(m/min)Traveling speed | 20 | |||||
| 電動機motor | 錐型鼠籠型cone squirrel-cage model | |||||
| 工作級別Working class | A3 | |||||
| 電源electric current | 380V 50Hz three-phase | |||||
| 軌道面寬width of trail | 37~70mm | |||||
| 起重量Liftingweight | 跨度span | 起重機質量Crane totalweight | 最大輪壓(KN)Maxwheepressure | 最小輪壓(KN)min.wheelpressure | 基本尺寸Basic Dimensions (mm | ||||||
| H? | H? | H? | B? | C? | C? | B | |||||
| 5 | 7.5 | 2.54 | 35.8 | 4.2 | 580 | 1380 | 720 | 2500 | 841.5 | 1310 | 2000 |
| 8 | 2.60 | 35.9 | 4.3 | ||||||||
| 8.5 | 2.65 | 36.0 | 4.4 | ||||||||
| 9 | 2.71 | 36.2 | 4.6 | ||||||||
| 9.5 | 2.77 | 36.3 | 4.7 | ||||||||
| 10 | 2.82 | 36.5 | 4.9 | ||||||||
| 10.5 | 2.88 | 36.6 | 5.0 | ||||||||
| 11 | 2.91 | 36.7 | 5.1 | ||||||||
| 11.5 | 3.35 | 37.8 | 6.2 | 660 | 1400 | 810 | 2500 | 2000 | |||
| 12 | 3.42 | 38.0 | 6.4 | ||||||||
| 12.5 | 3.52 | 38.3 | 6.7 | ||||||||
| 13 | 3.61 | 38.5 | 6.9 | ||||||||
| 13.5 | 3.67 | 38.7 | 7.1 | ||||||||
| 14 | 3.74 | 38.9 | 7.3 | ||||||||
| 14.5 | 4.09 | 39.8 | 8.2 | 785 | 1415 | 910 | 3000 | 2500 | |||
| 15 | 4.19 | 40.0 | 8.4 | ||||||||
| 15.5 | 4.27 | 40.2 | 8.6 | ||||||||
| 16 | 4.34 | 40.4 | 8.8 | ||||||||
| 16.5 | 4.42 | 40.6 | 9.0 | ||||||||
| 17 | 4.52 | 40.8 | 9.2 | ||||||||
| 19.5 | 5.15 | 42.3 | 10.7 | 820 | 1440 | 1010 | 3000 | 2500 | |||
| 22.5 | 6.05 | 45.0 | 13.4 | 875 | 1485 | 1110 | 3500 | 3000 | |||
