L型32t/5t單主梁吊鉤門式起重機參數L型32噸偏掛門式起重機尺寸
32噸偏掛門式起重機參數尺寸
L型32t/5t單主梁吊鉤門式起重機主要技術參數及尺寸，L型32噸偏掛門式起重機主要技術參數及尺寸，L型32t/5t單主梁偏掛門式起重機技術參數表，L型32t/5t單主梁偏掛門式起重機外形尺寸表，32噸偏掛門式起重機主要技術參數及尺寸

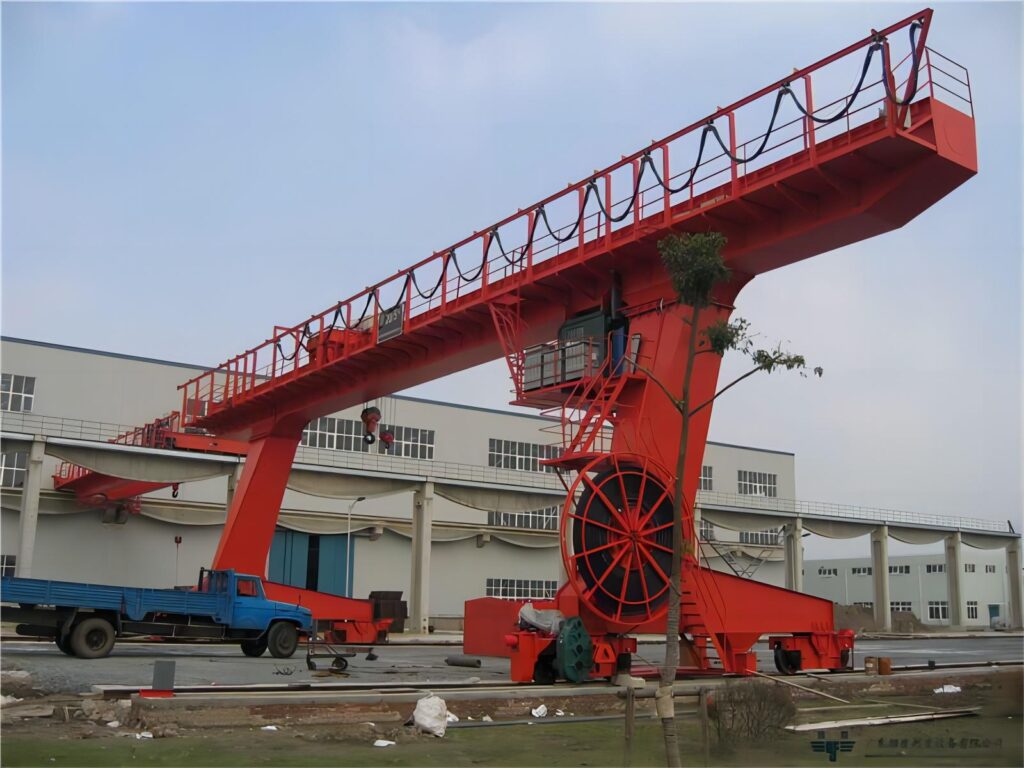

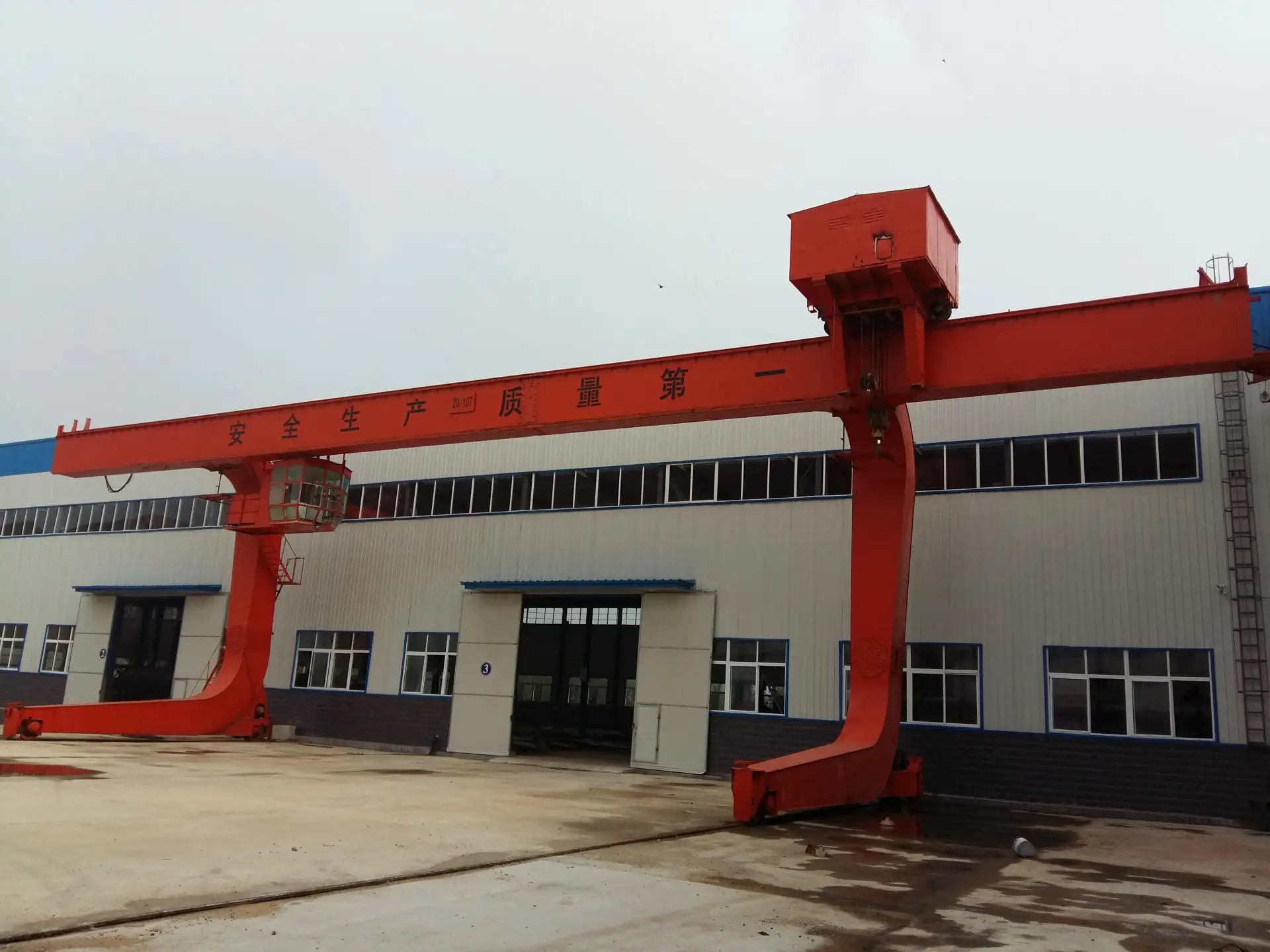

32噸偏掛門式起重機圖片
32噸偏掛門式起重機產品介紹
1.L型32t/5t單主梁吊鉤門式起重機適用于露天貨場、鐵路沿線進行一般的裝卸吊裝及起重搬運工作。
2.L型32t/5tt龍門吊因結構特點，在起升高度一定的情況下，整機的高度有所降低,節約了成本。
3 .L型32t/5tt龍門吊起重機自重輕,輪壓小，性能可靠。
Introduction:
L Type Single Girder Gantry Crane is opplid to general materials handling service in outdoor freight yard or along
railway lines,such as loading, unloading, lifting and transferring work.
Given certain lift height,theoverrall height ofL Type Gantry Crane is reduced out of its structural features. As a
result, the cost is lowered.
L Type Gantry Crane is featured by Light deadweightjight wheel load and reliable performance.

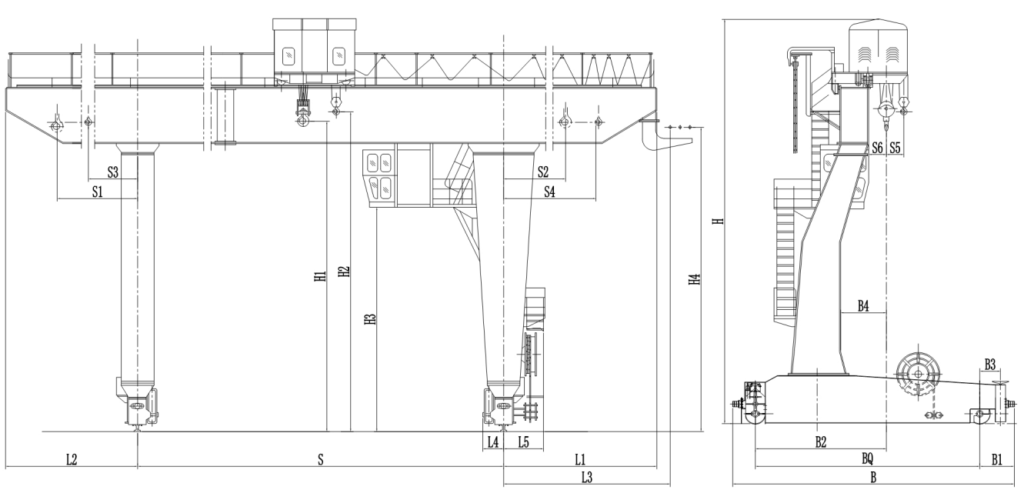

32噸偏掛門式起重機結構圖
32噸偏掛門式起重機技術參數
| 起重量 Cap | 主鉤 Mam | t | 32噸 | ||||
| 副鉤 Auxiliary | 5噸 | ||||||
| 跨度 Span | m | 18 | 22 | 26 | 30 | 35 | |
| 起升高度 Lifting Height | 10 | 11 | |||||
| 10.8 | 11.8 | ||||||
| 工作制度Duty | A5 | ||||||
| 速度Speed | 主 鉤Mam | m/min | 7.6 | ||||
| 副 鉤 Auxiliary | 11.9 | ||||||
| 小車運行 Crab travelling | 38.6 | ||||||
| 大車運行 Trolley travelling | 39 | 38 | |||||
| 極限尺寸 Limt dimenstion | L1 | mm | 8000 | 10000 | |||
| L2 | 8000 | 10000 | |||||
| L | 980 （兩吊鉤平行主梁） | ||||||
| C1 | 5000 | 7000 | |||||
| C2 | 5000 | 7000 | |||||
| 主要尺寸 Main dimenstion | H | 14380 | 14380 | 15500 | |||
| H1 | 10 | 11 | |||||
| H2 | 800 | ||||||
| H3 | 763 | 590 | |||||
| B | 10006 | 11800 | |||||
| W | 8000 | 8500 | |||||
| K | 一 | ||||||
| L3 | 780 | ||||||
| 最大輪壓 Max.Wheel Loading | kN | 210 | 215 | 225 | 230 | 235 | |
| 電機總功率Total Power | kw | 108 | 116 | ||||
| 薦用號岡軌 Crane Rail Recommended | QU80 | ||||||
| 電 源 Power Supply | I 三相交流 3-Phase A.C.50HZ380V | ||||||
